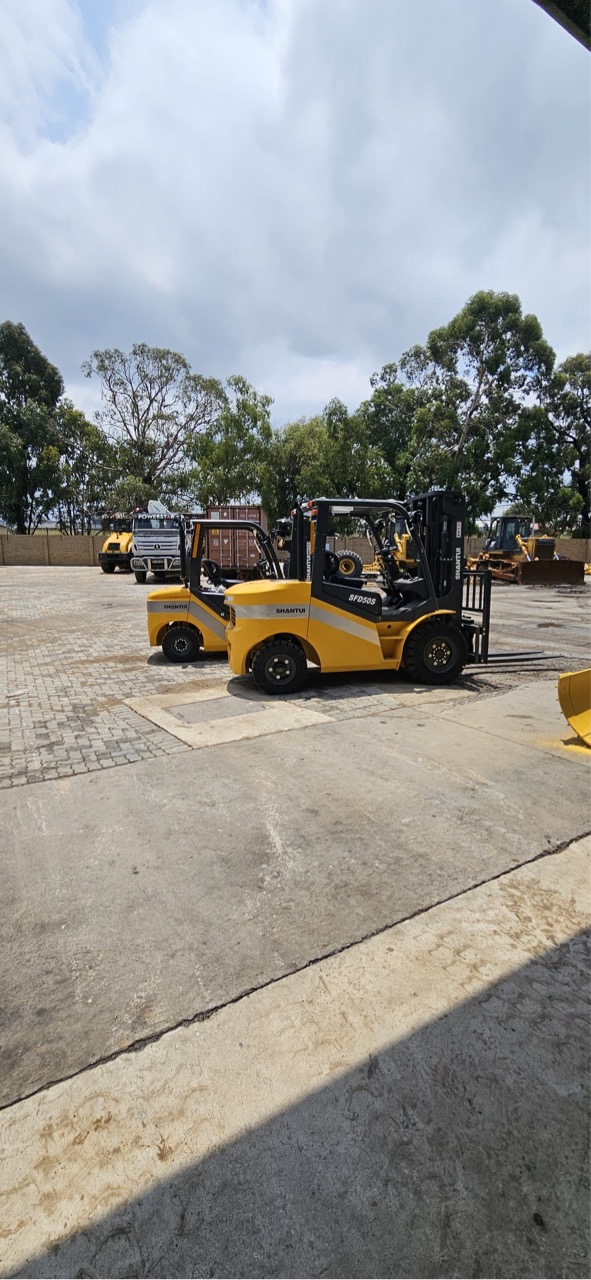

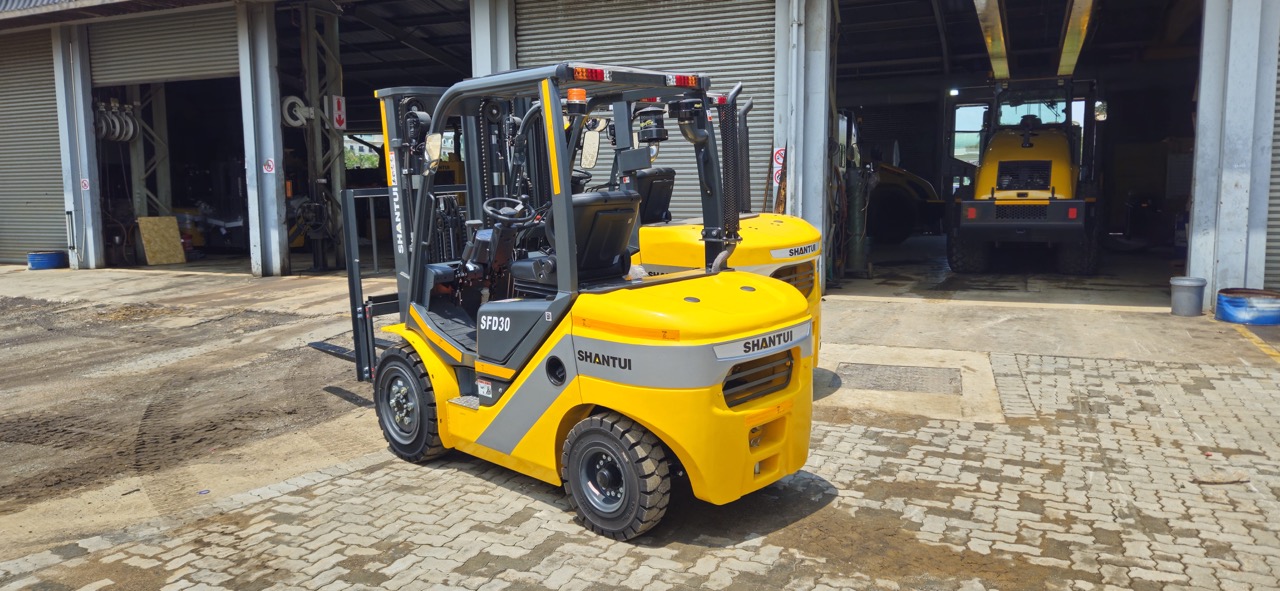

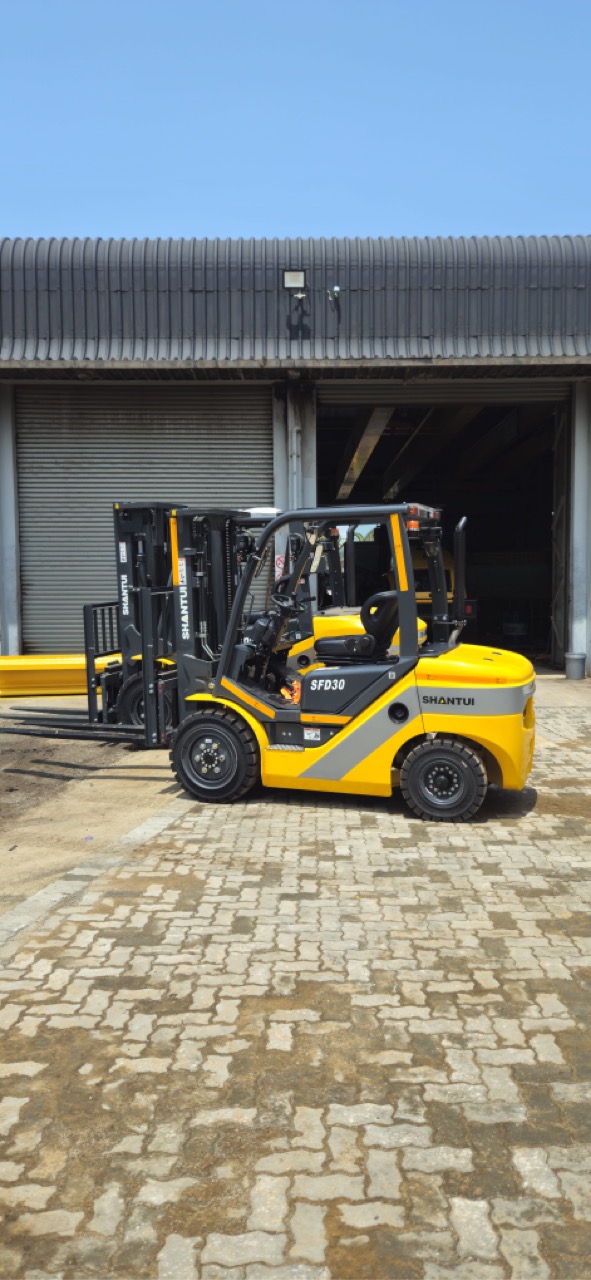

SHANTUI SFD30 FORKLIFT

ENGINE

Power type: Diesel
Make: Weichai
Model: WP3.2G50E347A
Emission Regulation: Tier 3 / Stage III
Rated Power: 36.8 kW @ 2500 rpm
Max Torque: 540 N.m
Displacement: 3.17 L
Number of Cylinders: 4
On-board Voltage: 12 V

PERFORMANCE

Drive Speed Laden/Unladen: 20/20.5 km/h
Lifting Speed Laden/Unladen: 480/540 s
Lowering Speed Laden/Unladen: 440/455 s
Load Capacity: 3000 kg
Loading Center Distance: 500 mm
Drawbar Pull at (2km/h) with/without Load: 16.2/14 kN
Gradeability (at 2km/h) Laden/Unladen: 20%
