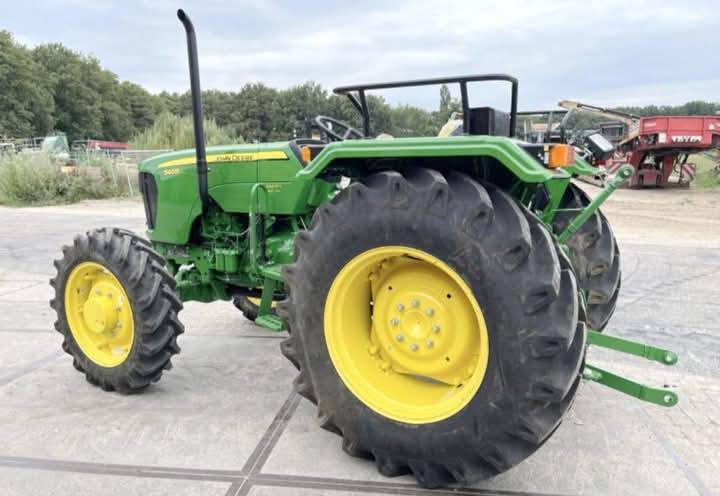

The John Deere 5404 is a robust, 2WD or 4WD utility tractor that is designed for agricultural tasks such as tilling, plowing, hauling, and other farm work. Here are the detailed product specifications for the John Deere 5404 Tractor:
Engine:
- Engine Type: 4-cylinder, turbocharged diesel engine
- Engine Power (Gross): 55 horsepower (41 kW)
- Engine Displacement: 3.3 liters (202 cubic inches)
- Fuel Tank Capacity: 60 liters (15.8 gallons)
- Cooling System: Liquid-cooled
- Air Filter: Dual-element air cleaner
- Emissions: Meets the emission regulations for its era
Transmission:
- Transmission Type: SynchroMesh or Constant Mesh transmission
- Gears: 8 forward and 4 reverse gears (8F/4R)
- Max Speed: Approximately 30-35 km/h (18.6-21.7 mph)
- Shuttle Type: Manual or synchronized shuttle for easy direction changes (depending on model)
Dimensions:
- Overall Length: 3,530 mm (139.4 inches)
- Overall Width: 1,850 mm (72.8 inches)
- Wheelbase: 2,310 mm (91 inches)
- Height (with ROPS): 2,495 mm (98.2 inches)
- Ground Clearance: 330 mm (13 inches)
- Weight: Approx. 2,500 kg (5,511 lbs)
Performance:
- Maximum PTO Power: 45 hp (33.5 kW)
- PTO Speed: 540/1000 rpm
- Hydraulic System Type: Open-center hydraulic system
- Hydraulic Flow Rate: 34 L/min (9 gpm)
- Hydraulic Lift Capacity: 1,500 kg (3,307 lbs) at the link ends
- Max Lift Height: Approximately 2.4 meters (7.9 feet)
4WD (Four-Wheel Drive) Options:
- Drive Type: Available in both 2WD and 4WD configurations
- Differential Lock: Available on 4WD versions for improved traction
- Axles: Mechanical axle engagement for 4WD models
3-Point Hitch:
- Category: I (Standard 3-point hitch)
- Lift Capacity at Link Ends: 1,500 kg (3,307 lbs)
- Rear Remote Valves: 1-2 optional rear remotes, depending on configuration
Tires:
- Front Tire Size: 6.00-16 or similar (depending on model)
- Rear Tire Size: 14.9-28 or similar (depending on model)
Brakes:
- Brakes: Wet multi-disc brakes for reliable stopping power in various conditions
Steering:
- Steering Type: Power steering for easier operation, especially with heavy loads or in tight spaces
Electrical System:
- Alternator: 12V, typically 55A
- Battery: 12V, typically 85Ah or higher
Cab & Comfort:
- Cab: Open operator station with Roll-Over Protection Structure (ROPS) for safety
- Seat: Adjustable seat for operator comfort, with optional suspension for better ride quality
- Steering Wheel: Adjustable steering wheel for ease of use
Optional Features (Varies by Model/Market):
- Front-End Loader Compatibility (depending on the configuration)
- Front PTO: Available for front-mounted implements
- Hydraulic Remotes: Additional remotes for greater versatility in implement connections
- Cab Options: Optional fully enclosed cabin for enhanced comfort (depending on model)
Other Features:
- Fuel Efficiency: The John Deere 5404 is designed to be fuel-efficient, making it suitable for long working hours on medium- to large-scale farms.
- Durability: Known for its reliable engine and build quality, the 5404 is a solid choice for tough field conditions.
- Ease of Maintenance: Like many John Deere models, the 5404 offers easy access to engine components for routine maintenance.
