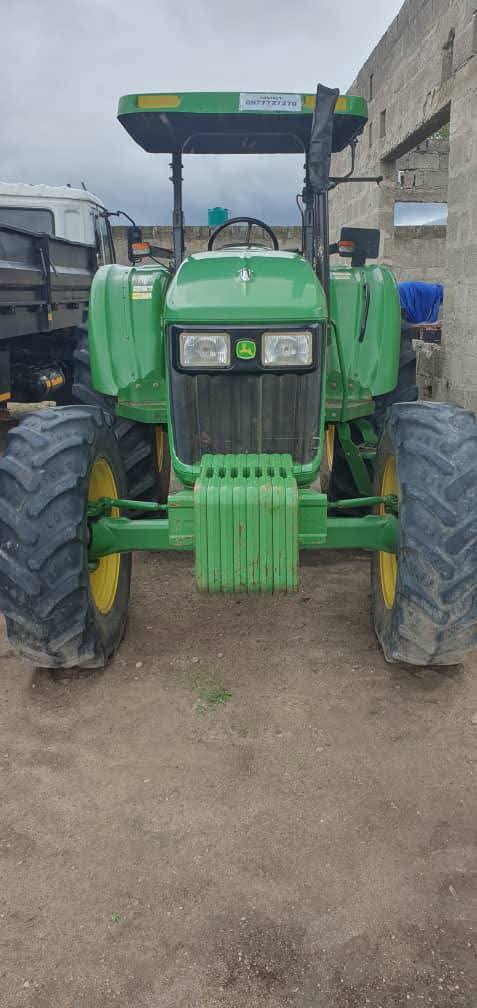

The John Deere 590 is a compact utility tractor that was designed for small to medium-sized farming and agricultural tasks. It offers a range of features suitable for tilling, mowing, hauling, and other farming applications. Below are the key specifications for a Used John Deere 590 Tractor:
Engine:
- Engine Type: 4-cylinder diesel engine
- Engine Power (Gross): 50 horsepower (37.3 kW)
- Engine Displacement: 2.9 liters (176 cubic inches)
- Fuel Tank Capacity: 53.3 liters (14.1 gallons)
- Cooling System: Liquid-cooled
- Air Filter: Dual-element air cleaner
- Starting System: Electric start
Transmission:
- Transmission Type: Synchro-shuttle or constant mesh transmission
- Gears: 8 forward and 4 reverse gears (depending on the model)
- Max Speed: 30-40 km/h (18.6-24.8 mph)
- Shuttle Type: Forward/reverse shuttle (for easy direction change)
Dimensions:
- Overall Length: 3,455 mm (136 inches)
- Overall Width: 1,805 mm (71 inches)
- Wheelbase: 2,310 mm (91 inches)
- Height (with ROPS): 2,435 mm (95.9 inches)
- Ground Clearance: 330 mm (13 inches)
- Weight: Approx. 2,500 kg (5,511 lbs)
Performance:
- Maximum PTO Power: 42 hp (31.3 kW)
- Hydraulic System Type: Open-center, live hydraulics
- Hydraulic Pump Capacity: 30 L/min (7.9 gpm)
- Lift Capacity: 1,400 kg (3,086 lbs) at the link ends
- Max Lift Height: Approximately 2.5 meters (8.2 feet) with rear linkage
4WD (Four-Wheel Drive):
- Drive Type: Available as 2WD or 4WD (4WD preferred for better traction and performance)
- Differential Lock: Available for enhanced traction when needed
3-Point Hitch:
- Category: I
- Lift Capacity at Link Ends: 1,400 kg (3,086 lbs)
- Hydraulic Remotes: Typically 1-2 rear remotes, depending on configuration
PTO (Power Take-Off):
- PTO Speeds: 540 rpm and 540E rpm
- PTO Type: Independent, with a standard rear PTO
- PTO Engagement: Electro-hydraulic engagement for ease of use
Tires:
- Front Tire Size: 7.50-16 or similar (depending on model)
- Rear Tire Size: 14.9-28 or similar (depending on model)
Brakes:
- Brakes: Wet multi-disc brakes for reliable performance, especially in tough conditions.
Steering:
- Steering Type: Power steering for easier handling and maneuverability
Electrical System:
- Alternator: 12V, typically 55A
- Battery: 12V (typically 95Ah or higher)
Cab & Comfort:
- Cab: Open operator station (no enclosed cab by default)
- Seat: Adjustable seat for operator comfort
- Steering Wheel: Adjustable steering wheel
- ROPS: Optional Roll-Over Protection Structure (ROPS) for added safety
Optional Features (Varies by Model/Market):
- Front-end Loader Compatibility
- Rear Hydraulic Remote Valves
- Tire Options: Larger tires or ballast weights for increased stability
- Cab Options: Can be equipped with a basic cab or canopy for better protection from weather
- Additional Implement Options: Compatible with various implements like front-end loaders, mowers, tillers, and more.
Additional Features:
- Fuel Efficiency: Known for being efficient with fuel, which is ideal for both short and long working hours.
- Reliability: John Deere is known for durable, long-lasting equipment with a solid reputation for reliability.
- Ease of Use: Simple controls and easy maintenance for a variety of farm operations.
